Smart Solution 1
|

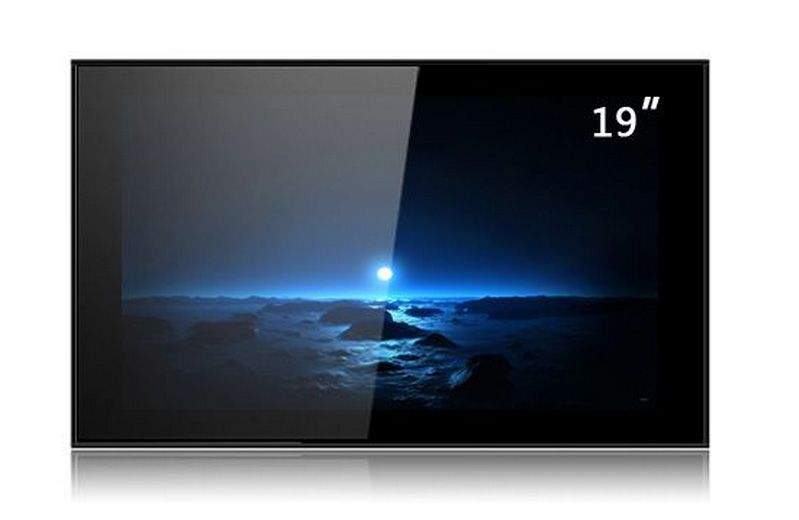

| Model | CAD014S00JWT | 19inch HD wall mounted advertising display ( 03 models ) |
| Display Specifications | Display Parameters | 19 inch WLED backlight |
| Resolution | 1920*1080 | |
| Display size | 700*395mm | |
| Display ratio | 16:09 | |
| Brightness | 360cd/m2 | |
| Contrast | 1400:1 | |
| Angle | 89° | |
| Color | 16.7M | |
| Response time | 6ms | |
| Life | 50000h | |
| Function Specifications | System | Embedded LINUX system |
| Sound | 8Ω5W Box Speaker | |
| Support | Video : Full Format ( Video 1080P, full- HD display ) | |
| Audio: full-format , mp3, WMA (32kbps ~ 384kbps) | ||
| Image and text : JPG, GIF, BMP, PNG, TXT | ||
| Storage | Support CF, SD, MMC, MS, up to 32GB | |
| Input port | VGA/HDMI/AV/USB | |
| Basic function | Supports horizontal and vertical screen playback, support for 180 -degree rotation function | |
| Start to play automatically , breakpoint memory , ad insertion function | ||
| Support for log management , schedule management , time management | ||
| Support time-volume , long subtitles, and with calendar | ||
| Support for USB playback , USB update , USB upgrade function | ||
| Support multi-language OSD | ||
| Extended function | Supports playlists setting | |
| Support for multiple split-screen mode selection | ||
| Machine Specifications | Operating temperature | 0°C to 50°C |
| Operating humidity | 10 to 80% | |
| Power | AC 110~240V | |
| Single size | 773*468*60mm | |
| Package Size | 1005*200*592mm | |
| Accessories | AC power cable , HDMI cable, remote control , keys , user manual , certificate, warrant |
Main Function
1. Build-in CF and SD card reader, support CF/SD/MS/MMS/XD card/USB drive, using CF and SD card as the source of programming.
2.Auto copy:
Support auto copy from USB to CF or SD.
3.Safely locking system :
To avoid taking way flash memory card.
4.Media files supported:
MPG1\2\3\4/AVI/RM/RMVB/MP3/JPG.
5.HD Video resolution:
Support 1920x1080 video display
6.Auto play:
Play advertising program automatically.
7.Playlists support functions:
can set different folders, copy all target files to those different folders, system would default to play
8.Rolling text:
Support rolling text caption.
9.Other funcion:
Build-in clock and calendar. Support 5 groups of auto power-on/off timer.
10.Power supply:
110-240V AC
1. Sample is available for your evaluation. The lead time for sample is 5-7days.
2. Fully customizable for the outlook and some functions.
3. 1 year quality warranty, perfect after-sell service.
